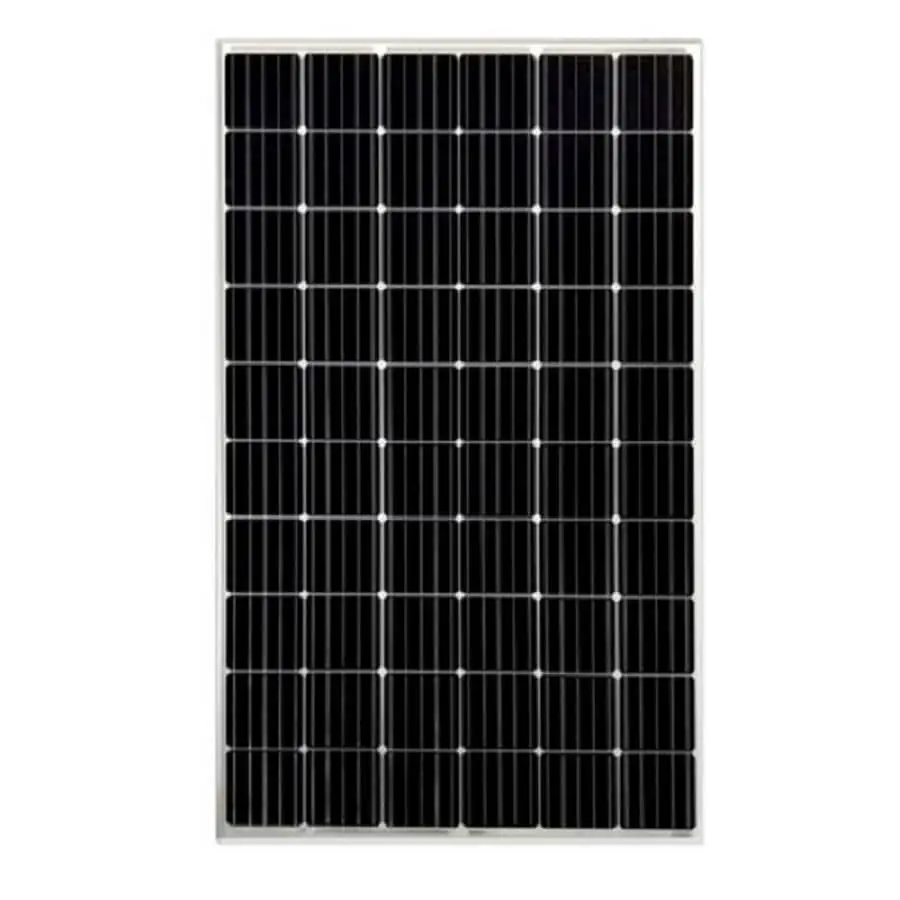

500W MONOCRYSTALLINE SOLAR PANEL

Product details

500W MONOCRYSTALLINE SOLAR PANEL
Features:

Nominal 48V DC for standard output.
High efficiency.
Outstanding low-light performance.
High transmission tempered glass.
Rugged design to withstands high wind pressure and snow load, easy installation.
Aesthetic appearance.
Design to meet unique demand of customer.
IP68 Junction Box, Connector
IP68 Junction Box and Connector have a high degree of waterproof, effectively resist the harsh environment

15A current
The junction box carries a current of 15A, ensuring high current flow through the modules 25 year module output warranty.

Super strong frame
Glue-spilled tank has a double-layer waterproof, cross-section with hook-shaped aluminum frame,enhanced by 10% of the mechanical load strength

Current division
The module refines the current division, thus effectively reducing the loss of up to 2% due to mismatch and increasing the power output of the system

Salt spray, Ammonia and PID test
resistance Excellent salt spray ,anti-ammonia and anti PID, TUV, SUD certification approved

Strong Mechanical load capacity
Passed the 2400pa wind load and 5400pa snow load test, ensuring that the module has a stable mechanical life

Color Classification
Modules are packaged according to color classification, to achieve consistent appearance after installation

Electrical Characteristics
Maximum power at STC?Pmax? 500W
Optimum operating voltage?Vmp? 48V
Optimum operating current?Imp? 10.42A
Open-circuit voltage?Voc? 57.6V
Short-circuit current?Isc? 11.90A
Short-circuit current temperature coefficient ?0.065±0.015?%/?
Open-circuit voltage temperature coefficient -?80±10?mV/?
Peak power temperature coefficient -?0.5±0.05?%/?
NOCT (Air 20?; Sun 0.8kW/m wind 1m/s) 47±2?
Operating temperature -40? to 85?
Maximum system voltage 1000V DC
Power tolerance ±3%
STC: lrradiance 1000W/m2?Module temperature 25??AM=1.5

Specification
Cell Mono-crystalline silicon solar cells
No. of cell and connection 96?8×12?
Dimension of module 1956mm×1300mm×40mm
Weight 28kg
Specifications are subject to change without notice at any time.
